Rotom Dex

Disclaimer

There is a bit of a forewarning I need to make about the design process of the Rotom Dex chatbot. This project was entirely a personal project to be worked on during my free time and was also an opportunity for me to learn more about app development and launch. The project was also missing an end goal. Was this a bot that I would launch to the public or just a proof-of-concept educational tool? Without a benchmark to aim for, a lot of the structure of the UX design process was stripped away from the project.

However, this is not to say that the insights from a project like this are meaningless. While it may be more challenging to follow the process of this project, it does shed some light onto topics not commonly talked about in portfolios, such as scope creep and designing with development in mind.

Research Goals

With the disclaimer out of the way, I can introduce the goals I had the research of this chatbot.

1.
Determine how users interact with chatbots

There are many types of chatbots out on the internet and on our phones. For this project, the bot I was creating would be more akin to an encyclopedia rather than a conversation partner (think Siri, not Cleverbot).

Competitive and Comparative Analysis

**After setting the goals, I moved into looking directly at bots that already exist on Discord. Rather than researching users at the beginning, each phase of my design/ideation was informed through the consultation of acquaintances familiar with the subject matter.

In the space of Pokémon chatbots on Discord, one stands out above the rest: Beheeyem. It currently is an official bot of the /r/Pokemon Discord server and is actually a replacement for an older bot known as Elgyem—an evolution, if you will.

However, while an impressive upgrade that improved upon the usability and readability of its predecessor, Beheeyem still had space to grow in terms of interaction design and robustness.

Key Points:

1. Beheeyem's target audience is the competitive audience.
2. Detailed information regarding stat values and viability ratings are immediately visible which can potentially increase cognitive load.
3. Some edge cases are not considered, meaning that user can potentially be misinformed about certain moves or types.
4. Some results are not displayed in a meaningful/logical way, forcing users to parse through the results to get the information they need.
5. Beheeyem implements a spell-check in case the user makes any misspellings. This is effective, but it doesn't extend beyond pointing out the user's mistake. This forces the user to reenter their query correctly.

Chatbots and UX

Since UX design is often miscategorized and conflated with UI design, mediums that aren't fully represented by their visuals are sometimes forgotten as experiences that benefit from UX design as well. With the rising prevalence of artificial intelligence, machine learning, and advanced neural networks in our daily interactions, the UX design of conversation with technology is becoming more of a hot topic and should be considered equally if not more important.

In a more traditional process, I would go over the Information Architecture of the project, but for Rotom Dex, the three main topics I will cover are:

1. Features and Scope Creep
2. Robustness
3. Personality

• Item Catalogue
• Move Catalogue
• Type Catalogue
• Ability Catalogue
• Shiny Sprites
• Stat Spreads

• Evolutionary Chains
• Egg Groups
• Competitive Viability
• About/Help
• Prefix Customization
• Easter Eggs

Personality

By adding a face and character to the chatbot, users tend to be more engaged. By nature, we tend to attribute our traits and emotions onto non-human entities and tend to trust things that mimic our behaviors.

Rotom Dex is a character in both the video games and animated series of Pokémon, so integrating its personality into the Discord bot brings a level of immersion that can positively impact the user's perception of it.

Adding personality also adds a level of conversation to the interaction. These subtle differences in how users perceive the bot influence how they interact and engage with it.

Adding a voice to Rotom Dex was key to grounding it in the Pokémon universe and adding to the immersion for the user. This was accomplished by

• Incorporating a script for all of the functions
• Developing a backstory on how it got onto Discord
• Maintaining consistent speech patterns and tendencies

Designing for a Chat Interface

Typically in this section I go over the UI design portion of the process, but with this project, the UI design is dictated by and limited to how Discord's interface works.

So instead, this will cover some of the design and development choices that were made during this project. Even when working with the limitations of Discord's chat interface, it's easy to see how

Space, Color, Contrast

The limited nature of the UI tools for Discord makes it more important to utilize concepts such as space, color, and contrast.

For example, this is how Beheeyem displays information about the Fire type:

The layout of this message makes it hard for users to find what they need at a glance.

• The (x2) and (x0.5) notations add a lot of visual fluff without providing much useful information.
• There is no visual distinction between the categories and the members of the categories
• The footnote with the donation link breaks the immersion of the bot
• The blue line doesn't match with the idea of "Fire"

This is how Rotom Dex presents the same information:

By utilizing more of the UI tools such as the thumbnail icon, as well as space, color, and contrast, it becomes much easier to read and find the most pertinent information.

Rotom Dex's implementation is not perfect, but given the limitations of the system, it has improved usability.

Designing with Development in Mind

This section won't cover any of the code behind the interface since this document is strictly a UX perspective. That being said, since I was not only the designer but the developer, I was able to get a unique perspective on how to design with development in mind.

How Development adds Restrictions (and why they help)

One might think that adding restrictions will limit the design choices but in actuality, having to abide by strict limitations often forces the designer to think more creatively.

Limitations can be technical, such as Discord bots only being able to send a single embed object per message, or non-technical, such as my lack of experience with NLP to develop a flexible speech recognition system.

For Rotom Dex, this affects everything from how information is displayed in the chat window to how it expects users to initiate a conversation.

Rapid Application Development

A lot of companies follow some sort of adaptive software development model such as Agile. Being able to concurrently design and develop Rotom Dex was a huge benefit to the whole project.

Instead of using wireframes to prototype and test features, the code could quickly be changed. And since this meant that the bot was being built alongside the testing, any limitations would inherently be considered during the design.

Designing Interactions

One of the goals I established from the research phase was to determine how users interact with chatbots. This includes how the user initiates the interaction.

With voice-activated systems, this can be something like saying "Hey Google" or "Alexa". Some have dedicated buttons that you can press to bring up a prompt.

Unfortunately with Rotom Dex, these don't really work in the context of a public chat room. To solve this problem, I followed a convention used by most Discord bots: the prefix.

What's a Prefix?

The way bots work in Discord (and a lot of other chat applications) is that they read every line of the conversation and only respond when a message is meant for them. Adding a prefix at the beginning of the message is a way for the bot to make that distinction.

For example, Rotom Dex only responds when a user begins the message with "r." and a valid command such as "dex". Anything else and the user will be met with silence.

But what if another bot on the server shares the same prefix? Rotom Dex includes the ability to change the prefix for that server!

How Rotom Dex Responds

There are only 3 possible scenarios for Rotom Dex to consider after seeing the proper prefix.

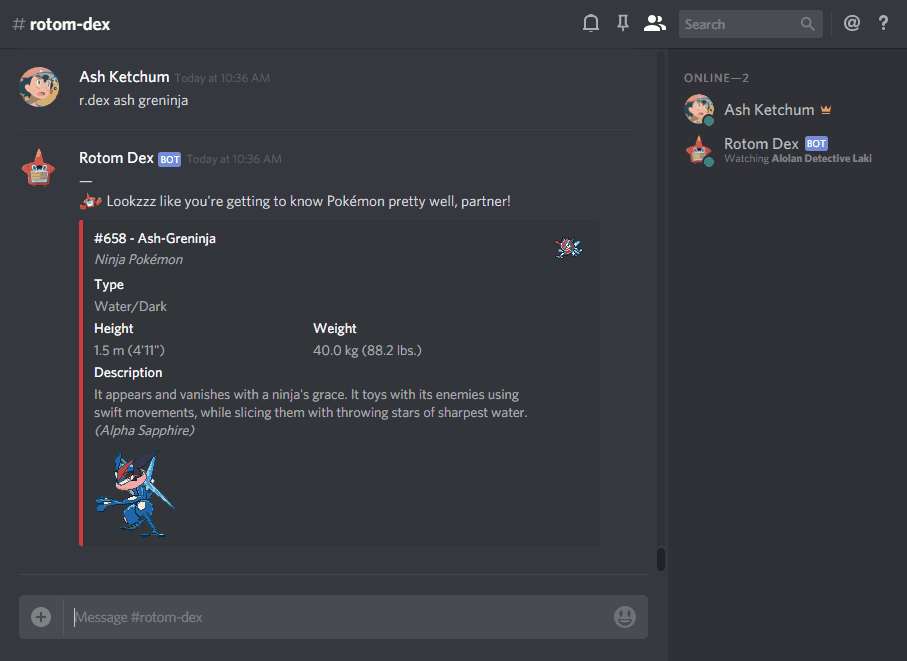

1. The user sends a valid command with valid arguments such as "r.dex pikachu"
2. The user sends a valid command with invalid argments such as "r.move thunderjolt"
3. The user sends an invalid command

In the first scenario, Rotom Dex replies back with the requested information and ends the interaction.

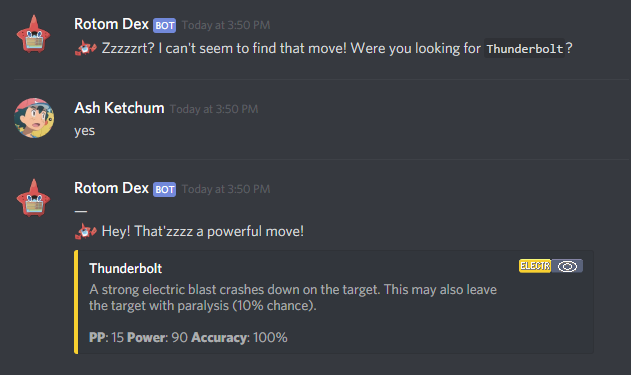

In the second scenario the user has requested move information about "Thunderjolt" which is not a valid name for a move. Here the spell check kicks in and Rotom Dex will ask if they meant "Thunderbolt" instead, prompting a continuation of the interaction.

The user can then reply with a "yes" or "no" and Rotom Dex will then respond accordingly, thus ending the interaction after the second message.

In the third scenario, Rotom Dex doesn't respond at all. The interaction never begins. Rotom Dex fails silently rather than providing an error message since that is a behavior that can be abused by the user to annoy other users.

Rotom Dex will always follow one of these 3 behaviors whenever a user pings it.

But what about the edge cases that were mentioned earlier?

Dealing with Exceptions

I'm not referring to exceptions to the behaviors above, but rather exceptions where the information given to the user deviates from the normally accepted game mechanics of Pokémon.

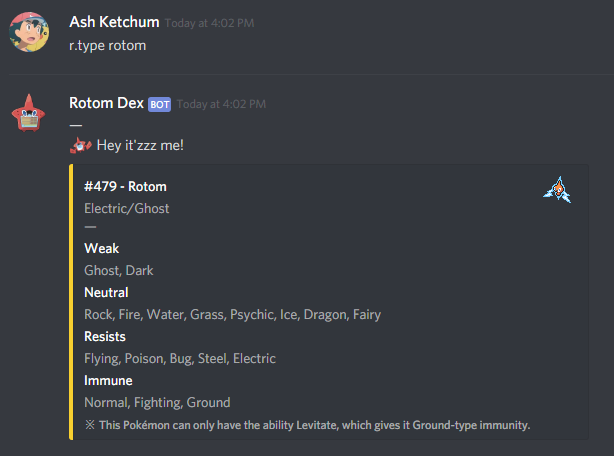

For example, Electric-type Pokémon are generally extra susceptible to Ground-type moves. Pokémon with the Levitate ability are immune to Ground-type moves. What happens when an Electric-type Pokémon has the ability levitate?

The footnote at the bottom with the ※ symbol informs the user that this is a special exception. If Rotom Dex did not check for edge cases like this, it would provide the user with inaccurate information.

These exceptions also exist for moves such as Flying Press, a move that is both Fighting-type and Flying-type simultaneously which affects its type matchups.

Prototype

You can test out Rotom Dex for yourself below!

Testing and Future Considerations

Rotom Dex was tested by a small group of users from its target demographic throughout the design and development phases.

I feel that as a personal project, Rotom Dex has reached a point where it has enough core functionality to be considered a fully featured product.

Next Steps

However, Rotom Dex has many areas for improvement and growth. The following is a list of short-term goals that will help improve the experience of interacting with Rotom Dex.

1. Launch to a wider audience by advertising in public spaces such as Reddit and the Discord Bot community
2. Use the increase in user volume to pinpoint key usage metrics
3. Probe for any pain points users may encounter while using Rotom Dex
4. Add or change features depending on the insights gained from the above steps

Additionally, some long-term goals include:

1. Migrate from an offline database to an online resource such as PokéAPI
2. Implement more interactable/actionable UI elements such as reactions
3. Create a different interaction model in direct message threads with Rotom Dex
   • Use machine learning to move from rule-based to statistical NLP
4. Adjust/update the database for future versions of Pokémon
